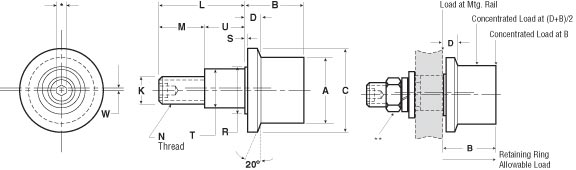

| Item No. | Part Number | Scale | A Roller Dia (In) | B Roller Width (In) | C Flange Dia (In) | D Flange Thickness (In) | K Stud Dia (In) | L Stud Length (In) | M Thread Length (In) | N Thread | R Shoulder Dia (In) | S Shoulder Length (In) | T Eccentric Dia (In) | T Tolerance | U Eccentric Length (In) | U Tolerance | W Eccentricity (In) | Recommended Mounting Hole Size (In) | Recommended Mounting Hole Tolerance | Approx Wt (lbs) | Bearing | Radial Capacity 3000hrs L10 Life @100 RPM (lbs) | Radial Capacity 500hrs L10 Life @33-1/3 RPM (lbs) | Radial Capacity Static Limit (lbs) | Thrust Capacity Static Limit (lbs) | Mounting Member Thickness Max (In) | Mounting Member Thickness Min (In) | Stud Capacity Bend @B/2 (lbs) | Stud Capacity Bend @B (lbs) | Stud Capacity Shear (lbs) | Retaining Ring Capacity (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95917 | FLRE-1-1/2 | Imperial | 1.5 | 1.187 | 2.188 | 0.343 | 0.625 | 1.5 | 0.77 | 5/8-18 | 1.125 | 0.062 | 0.875 | +0.001 -0.001 | 0.73 | +0.000 -0.010 | 0.03 | 0.877 | +0.001 -0.000 | 0.8 | BB | 1050 | 2760 | 1100 | 680 | 0.875 | 0.75 | 1100 | 650 | 5780 | 470 |
| 95922 | FLRE-1-3/4 | Imperial | 1.75 | 1.187 | 2.438 | 0.343 | 0.75 | 1.75 | 0.895 | 3/4-16 | 1.24 | 0.062 | 1 | +0.001 -0.001 | 0.855 | +0.000 -0.010 | 0.03 | 1.002 | +0.001 -0.000 | 1.1 | BB | 1050 | 2760 | 1100 | 680 | 1 | 0.875 | 1130 | 650 | 5780 | 470 |
| 95924 | FLRE-2 | Imperial | 2 | 1.688 | 2.688 | 0.593 | 0.875 | 2 | 1.02 | 7/8-14 | 1.5 | 0.062 | 1.187 | +0.001 -0.001 | 0.98 | +0.000 -0.010 | 0.03 | 1.189 | +0.001 -0.000 | 2.1 | BB | 1460 | 3830 | 1620 | 1000 | 1.125 | 1 | 2640 | 1500 | 11610 | 910 |
| 95927 | FLRE-2-1/4 | Imperial | 2.25 | 1.688 | 2.938 | 0.593 | 0.875 | 2 | 1.02 | 7/8-14 | 1.5 | 0.062 | 1.187 | +0.001 -0.001 | 0.98 | +0.000 -0.010 | 0.03 | 1.189 | +0.001 -0.000 | 2.5 | BB | 1460 | 3830 | 1620 | 1000 | 1.125 | 1 | 2640 | 1500 | 11610 | 910 |
| 95928 | FLRE-2-1/2 | Imperial | 2.5 | 1.688 | 3.188 | 0.593 | 1 | 2.25 | 1.145 | 1-14 | 1.687 | 0.062 | 1.375 | +0.001 -0.001 | 1.105 | +0.000 -0.010 | 0.03 | 1.377 | +0.001 -0.000 | 3 | BB | 1980 | 5190 | 2270 | 1400 | 1.25 | 1.125 | 2780 | 1770 | 14580 | 1340 |
| 95931 | FLRE-2-3/4 | Imperial | 2.75 | 1.688 | 3.438 | 0.593 | 1 | 2.25 | 1.145 | 1-14 | 1.687 | 0.062 | 1.375 | +0.001 -0.001 | 1.105 | +0.000 -0.010 | 0.03 | 1.377 | +0.001 -0.000 | 3.5 | BB | 1980 | 5190 | 2270 | 1400 | 1.25 | 1.125 | 2780 | 1770 | 14580 | 1340 |
| 95932 | FLRE-3 | Imperial | 3 | 2 | 3.938 | 0.593 | 1.25 | 2.5 | 1.27 | 1 1/4-12 | 2.312 | 0.062 | 1.75 | +0.001 -0.001 | 1.23 | +0.000 -0.010 | 0.06 | 1.752 | +0.001 -0.000 | 5.1 | TRB | 6000 | 14270 | 20000 | 12000 | 1.375 | 1.25 | 9980 | 6370 | 40500 | 0 |
| 95939 | FLRE-3-1/4 | Imperial | 3.25 | 2 | 4.188 | 0.593 | 1.25 | 2.5 | 1.27 | 1 1/4-12 | 2.312 | 0.062 | 1.75 | +0.001 -0.001 | 1.23 | +0.000 -0.010 | 0.06 | 1.752 | +0.001 -0.000 | 5.8 | TRB | 6000 | 14270 | 20000 | 12000 | 1.375 | 1.25 | 9980 | 6370 | 40500 | 0 |
| 95940 | FLRE-3-1/2 | Imperial | 3.5 | 2 | 4.438 | 0.593 | 1.25 | 2.75 | 1.395 | 1 1/4-12 | 2.312 | 0.062 | 1.812 | +0.001 -0.001 | 1.355 | +0.000 -0.010 | 0.06 | 1.814 | +0.001 -0.000 | 6.8 | TRB | 6000 | 14270 | 20000 | 12000 | 1.5 | 1.375 | 9980 | 6370 | 40500 | 0 |
| 95941 | FLRE-4 | Imperial | 4 | 2 | 4.938 | 0.593 | 1.25 | 2.75 | 1.395 | 1 1/4-12 | 2.312 | 0.062 | 1.812 | +0.001 -0.001 | 1.355 | +0.000 -0.010 | 0.06 | 1.814 | +0.001 -0.000 | 8.5 | TRB | 6000 | 14270 | 20000 | 12000 | 1.5 | 1.375 | 9980 | 6370 | 40500 | 0 |
| 95946 | FLRE-4-1/2 | Imperial | 4.5 | 2 | 5.438 | 0.593 | 1.25 | 2.75 | 1.395 | 1 1/4-12 | 2.312 | 0.062 | 1.812 | +0.001 -0.001 | 1.355 | +0.000 -0.010 | 0.06 | 1.814 | +0.001 -0.000 | 10.5 | TRB | 6000 | 14270 | 20000 | 12000 | 1.5 | 1.375 | 9980 | 6370 | 40500 | 0 |
| 95948 | FLRE-5 | Imperial | 5 | 3 | 5.938 | 0.718 | 2 | 4.5 | 2.375 | 2-12 | 3.25 | 0.062 | 2.625 | +0.001 -0.001 | 2.125 | +0.000 -0.010 | 0.06 | 2.627 | +0.001 -0.000 | 19.5 | TRB | 13990 | 33290 | 51900 | 32500 | 2.5 | 2.25 | 28300 | 17350 | 103670 | 0 |
| 95949 | FLRE-6 | Imperial | 6 | 3 | 6.938 | 0.718 | 2.5 | 5.5 | 2.625 | 2 1/2-12 | 3.625 | 0.062 | 3.125 | +0.001 -0.001 | 2.875 | +0.000 -0.010 | 0.06 | 3.127 | +0.001 -0.000 | 32 | TRB | 15060 | 35840 | 56400 | 33100 | 3.25 | 3 | 55320 | 33910 | 161990 | 0 |
| 97330 | FLRE-1 | Imperial | 1 | 0.781 | 1.375 | 0.219 | 0.437 | 1 | 0.5 | 7/16-20 | 0.75 | 0.031 | 0.625 | +0.001 -0.001 | 0.5 | +0.000 -0.010 | 0.03 | 0.627 | +0.001 -0.000 | 0.3 | BB | 240 | 630 | 230 | 140 | 0.625 | 0.5 | 370 | 210 | 1970 | 380 |
| 97331 | FLRE-1-1/8 | Imperial | 1.125 | 0.781 | 1.5 | 0.219 | 0.437 | 1 | 0.5 | 7/16-20 | 0.75 | 0.031 | 0.625 | +0.001 -0.001 | 0.5 | +0.000 -0.010 | 0.03 | 0.627 | +0.001 -0.000 | 0.4 | BB | 240 | 630 | 230 | 140 | 0.625 | 0.5 | 370 | 210 | 1970 | 380 |
| 97332 | FLRE-1-1/4 | Imperial | 1.25 | 0.844 | 1.563 | 0.219 | 0.5 | 1.25 | 0.625 | 1/2-20 | 0.812 | 0.031 | 0.687 | +0.001 -0.001 | 0.625 | +0.000 -0.010 | 0.03 | 0.689 | +0.001 -0.000 | 0.4 | BB | 520 | 1350 | 600 | 370 | 0.75 | 0.625 | 710 | 390 | 3250 | 470 |
| 97333 | FLRE-1-3/8 | Imperial | 1.375 | 0.844 | 1.688 | 0.219 | 0.5 | 1.25 | 0.625 | 1/2-20 | 0.812 | 0.031 | 0.687 | +0.001 -0.001 | 0.625 | +0.000 -0.010 | 0.03 | 0.689 | +0.001 -0.000 | 0.5 | BB | 520 | 1350 | 600 | 370 | 0.75 | 0.625 | 710 | 390 | 3250 | 470 |
| 97604 | FLRE-2-1/2-4 | Imperial | 2.5 | 1.812 | 3.188 | 0.593 | 1 | 2.25 | 1.145 | 1-14 | 1.687 | 0.062 | 1.375 | +0.001 -0.001 | 1.105 | +0.000 -0.010 | 0.03 | 1.377 | +0.001 -0.000 | 3 | TRB | 4570 | 10880 | 7630 | 4570 | 1.25 | 1.125 | 5460 | 3580 | 29920 | 0 |
