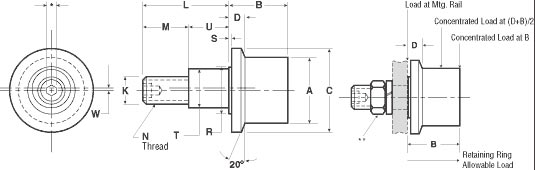

| Item No. | Part Number | Scale | A Roller Dia (mm) | B Roller Width (mm) | C Flange Dia (mm) | D Flange Thickness (mm) | K Stud Dia (mm) | L Stud Length (mm) | M Thread Length (mm) | N Thread | R Shoulder Dia (mm) | S Shoulder Length (mm) | T Eccentric Dia (mm) | T Tolerance | U Eccentric Length (mm) | U Tolerance | W Eccentricity (mm) | Recommended Mounting Hole Size (mm) | Approx Wt (kg) | Bearing | Radial Capacity 3000hrs L10 Life @100 RPM (n) | Radial Capacity 500hrs L10 Life @33-1/3 RPM (n) | Radial Capacity Static Limit (n) | Thrust Capacity Static Limit (n) | Stud Capacity Bend @B/2 (n) | Stud Capacity Bend @B (n) | Stud Capacity Shear (n) | Retaining Ring Capacity (n) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95907 | HPJE-40-1 | Metric | 40 | 27.6 | 54 | 7.8 | 18 | 36.5 | 20.5 | M18x1.5 | 28.5 | 1.6 | 22 | +0.00 -0.05 | 16 | +0.00 -0.25 | 1 | 22.02 | 0.35 | BB | 4680 | 12260 | 4900 | 3030 | 5040 | 3060 | 25690 | 2090 |
| 95909 | HPJE-50 | Metric | 50 | 40 | 68 | 14 | 16 | 50 | 32 | M16x2 | 32 | 1.6 | 24 | +0.00 -0.05 | 18 | +0.00 -0.25 | 1 | 24.02 | 0.94 | BB | 6490 | 17020 | 7210 | 4450 | 11980 | 6930 | 51600 | 4050 |
| 95910 | HPJE-62-1 | Metric | 62 | 44 | 78 | 14 | 24 | 49.5 | 27.5 | M24x1.5 | 43 | 1.6 | 28 | +0.00 -0.05 | 22 | +0.00 -0.25 | 1 | 28.02 | 1.13 | BB | 8810 | 23080 | 10090 | 6230 | 12340 | 7650 | 64850 | 5960 |
| 95912 | HPJE-76 | Metric | 76 | 52 | 98 | 14 | 24 | 70 | 41 | M24x1.5 | 50 | 1.6 | 35 | +0.00 -0.05 | 29 | +0.00 -0.25 | 1.5 | 35.02 | 2.31 | TRB | 26670 | 63480 | 88960 | 53380 | 18840 | 11820 | 102740 | 0 |
| 95913 | HPJE-90 | Metric | 90 | 52 | 112 | 14 | 24 | 70 | 41 | M24x1.5 | 50 | 1.6 | 35 | +0.00 -0.05 | 29 | +0.00 -0.25 | 1.5 | 35.02 | 3.09 | TRB | 26670 | 63480 | 88960 | 53380 | 18840 | 11820 | 102740 | 0 |
| 95914 | HPJE-100 | Metric | 100 | 52 | 125 | 14 | 24 | 70 | 41 | M24x1.5 | 50 | 1.6 | 35 | +0.00 -0.05 | 29 | +0.00 -0.25 | 1.5 | 35.02 | 3.79 | TRB | 26670 | 63480 | 88960 | 53380 | 18840 | 11820 | 102740 | 0 |
| 95915 | HPJE-125 | Metric | 125 | 76 | 148 | 18 | 48 | 105 | 55 | M48x5 | 82.5 | 1.6 | 64 | +0.00 -0.05 | 50 | +0.00 -0.25 | 1.5 | 64.02 | 4.74 | TRB | 62210 | 148070 | 230860 | 144570 | 106160 | 65120 | 411830 | 0 |
| 95916 | HPJE-150 | Metric | 150 | 76 | 173 | 18.3 | 64 | 140 | 75 | M64x6 | 92 | 1.6 | 80 | +0.00 -0.05 | 65 | +0.00 -0.25 | 1.5 | 80.02 | 5.69 | TRB | 66990 | 159430 | 250880 | 147240 | 254530 | 153930 | 731550 | 0 |
| 97386 | HPJE-26 | Metric | 26 | 20 | 35 | 5 | 10 | 23 | 13 | M10x1 | 17.1 | 0.8 | 13 | +0.00 -0.05 | 10 | +0.00 -0.25 | 0.5 | 13.02 | 0.14 | BB | 1070 | 2790 | 1000 | 620 | 1610 | 890 | 8780 | 1700 |
| 97387 | HPJE-30 | Metric | 30 | 20 | 40 | 5 | 12 | 25 | 14 | M12x1.5 | 17.5 | 0.8 | 15 | +0.00 -0.05 | 11 | +0.00 -0.25 | 0.5 | 15.02 | 0.17 | BB | 1070 | 2790 | 1000 | 620 | 1610 | 890 | 8780 | 1700 |
| 97388 | HPJE-32 | Metric | 32 | 22 | 42 | 5 | 12 | 25 | 14 | M12x1.5 | 17.5 | 0.8 | 15 | +0.00 -0.05 | 11 | +0.00 -0.25 | 0.5 | 15.02 | 0.2 | BB | 2300 | 6010 | 2690 | 1660 | 3070 | 1690 | 14450 | 2090 |
| 97389 | HPJE-35 | Metric | 35 | 22 | 46 | 5 | 16 | 32.5 | 18 | M16x1.5 | 23.8 | 0.8 | 20 | +0.00 -0.05 | 14.5 | +0.00 -0.25 | 1 | 20.02 | 0.23 | BB | 2300 | 6010 | 2690 | 1660 | 3130 | 1690 | 14450 | 2090 |
