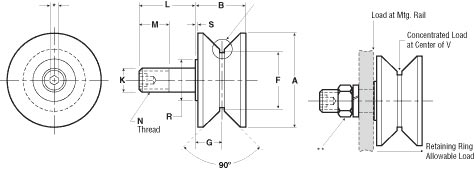

| Item No. | Part Number | Scale | A Roller Dia (In) | B Roller Width (In) | F Point Dia (In) | G Groove Location (In) | K Stud Dia (In) | K Tolerance | L Stud Length (In) | M Thread Length (In) | N Thread | R Shoulder Dia (In) | S Shoulder Length (In) | Recommended Mounting Hole Size (In) | Recommended Mounting Hole Tolerance | Approx Wt (lbs) | Bearing | Radial Capacity 3000hrs L10 Life @100 RPM (lbs) | Radial Capacity 500hrs L10 Life @33-1/3 RPM (lbs) | Radial Capacity Static Limit (lbs) | Thrust Capacity Static Limit (lbs) | Mounting Member Thickness Max (In) | Mounting Member Thickness Min (In) | Stud Capacity Bend @V (lbs) | Stud Capacity Shear (lbs) | Retaining Ring Capacity (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95660 | VLR-2-1/2 | Imperial | 2.5 | 1.312 | 1.5 | 0.687 | 0.75 | +0.000 -0.001 | 1.75 | 0.875 | 3/4-16 | 1 | 0.062 | 0.751 | +0.001 +0.000 | 1.3 | BB | 1050 | 2760 | 1100 | 680 | 1.25 | 1 | 1230 | 5780 | 470 |
| 95678 | VLR-3-1/2 | Imperial | 3.5 | 1.687 | 2.25 | 0.875 | 0.875 | +0.000 -0.001 | 2 | 1.125 | 7/8-14 | 1 | 0.062 | 0.876 | +0.001 +0.000 | 3.4 | BB | 1980 | 5190 | 2270 | 1400 | 1.25 | 1 | 3730 | 14580 | 1340 |
| 95685 | VLR-3-1/2-16 | Imperial | 3.5 | 2 | 2.25 | 0.875 | 0.75 | +0.000 -0.001 | 2 | 1.125 | 3/4-16 | 1.25 | 0.062 | 0.751 | +0.001 +0.000 | 3.4 | TRB | 3780 | 8990 | 7200 | 3150 | 1.25 | 1 | 3120 | 14580 | 0 |
| 95729 | VLR-4-1/2 | Imperial | 4.5 | 2 | 3 | 1 | 1.25 | +0.000 -0.001 | 2.5 | 1.75 | 1 1/4-12 | 1.75 | 0.062 | 1.251 | +0.001 +0.000 | 7 | TRB | 6000 | 14270 | 20000 | 12000 | 1.25 | 1 | 12660 | 40500 | 0 |
| 95760 | VLR-5-1/2 | Imperial | 5.5 | 2 | 4 | 1 | 1.25 | +0.000 -0.001 | 2.75 | 1.75 | 1 1/4-12 | 1.75 | 0.062 | 1.251 | +0.001 +0.000 | 10.5 | TRB | 6000 | 14270 | 20000 | 12000 | 1.5 | 1.25 | 12660 | 40500 | 0 |
| 95770 | VLR-6-1/2 | Imperial | 6.5 | 3 | 5 | 1.5 | 2 | +0.000 -0.001 | 4.5 | 2.5 | 2-12 | 3.25 | 0.062 | 2.001 | +0.001 +0.000 | 25.5 | TRB | 15060 | 35840 | 56400 | 33100 | 3 | 2 | 34880 | 103670 | 0 |
| 95777 | VLR-7-1/2 | Imperial | 7.5 | 3 | 6 | 1.5 | 2.5 | +0.000 -0.001 | 5.5 | 3.25 | 2 1/2-12 | 3.25 | 0.062 | 2.501 | +0.001 +0.000 | 37 | TRB | 15060 | 35840 | 56400 | 33100 | 3.25 | 2.25 | 68130 | 161990 | 0 |
| 95782 | VLR-8-1/2 | Imperial | 8.5 | 3 | 7 | 1.5 | 2.5 | +0.000 -0.001 | 5.5 | 3.25 | 2 1/2-12 | 3.25 | 0.062 | 2.501 | +0.001 +0.000 | 46 | TRB | 15060 | 35840 | 56400 | 33100 | 3.25 | 2.25 | 68130 | 161990 | 0 |
| 97334 | VLR-1-1/2 | Imperial | 1.5 | 0.781 | 1.125 | 0.391 | 0.437 | +0.000 -0.001 | 1 | 0.5 | 7/16-20 | 0.5 | 0.031 | 0.438 | +0.001 +0.000 | 0.5 | BB | 240 | 630 | 230 | 140 | 0.625 | 0.5 | 370 | 1970 | 380 |
| 97335 | VLR-2 | Imperial | 2 | 0.844 | 1.375 | 0.422 | 0.5 | +0.000 -0.001 | 1.25 | 0.625 | 1/2-20 | 0.625 | 0.031 | 0.5 | +0.001 +0.000 | 0.6 | BB | 520 | 1350 | 600 | 370 | 0.75 | 0.625 | 920 | 3250 | 470 |
